Maxphotonics M5-BOX laser integrates 5 core components into one, realizes multi-card integration one card function, multi-source power supply is integrated into single-source power supply mode, which has certain advantages in lightness, flexibility and speed. Achieving 1>5, it becomes a small-volume, lightweight, high-speed, high-flexibility, cost-effective fiber laser.
1. Highly integrated

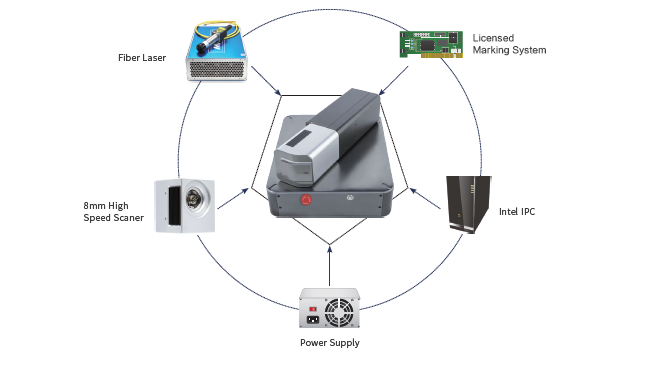

1 M5-BOX laser>5 core accessories, the same function configuration, strong integration of five core components, set fiber laser, 8mm high speed galvanometer, power supply, Intel industrial computer, genuine marking system in one, convenient and quick integration installation, reduce Redundant equipment keeps the working environment clean and tidy.
2.Mini Stytle

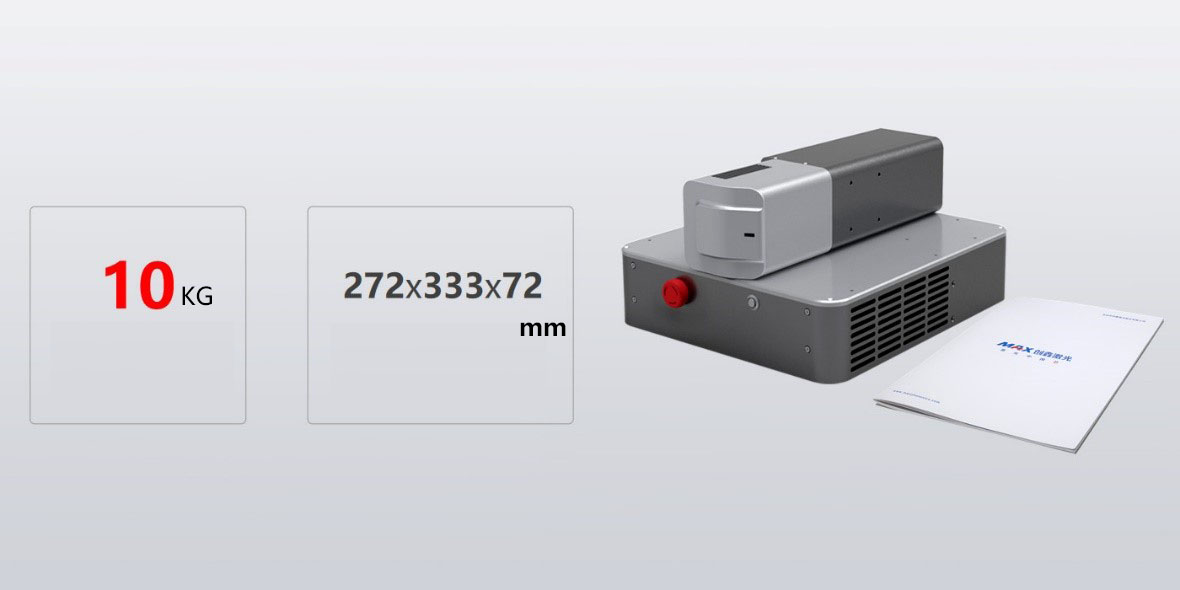

The M5-BOX laser has a width and length of only 14 inches. The overall height of the main unit and the cross arm is only 20CM and weighs 10kg. It can be easily put into an ordinary backpack. The laser marking machine assembled using the M5-BOX laser weighs only 1/5 or less of the weight of a conventional marking machine (50-80 kg).
3. Fast and Accurate
The 8mm high-speed galvanometer scanning system makes it easy to achieve 8000mm/s laser engraving speed. Red light focus preview is available before the official engraving for easy positioning and simulation engraving.
4. Strong Adaptability

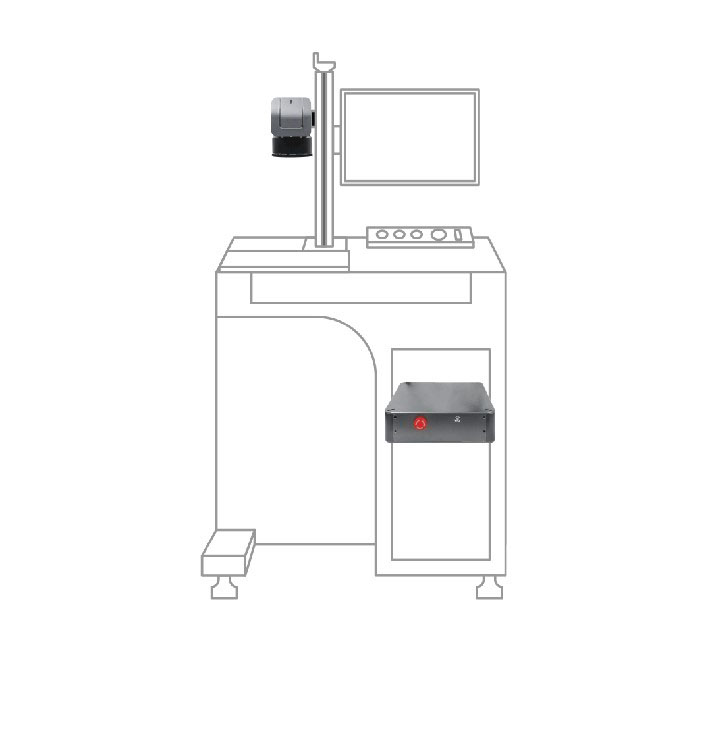

The cross arm of the M5-BOX laser can be easily realized by the top surface or the bottom surface according to the specific conditions of the factory assembly line. The laser marking can be easily realized by fixing the display through the display mounting accessories. The main choice of machine, desktop laser engraving machine, non-standard automatic laser engraving equipment and portable laser engraving machine.

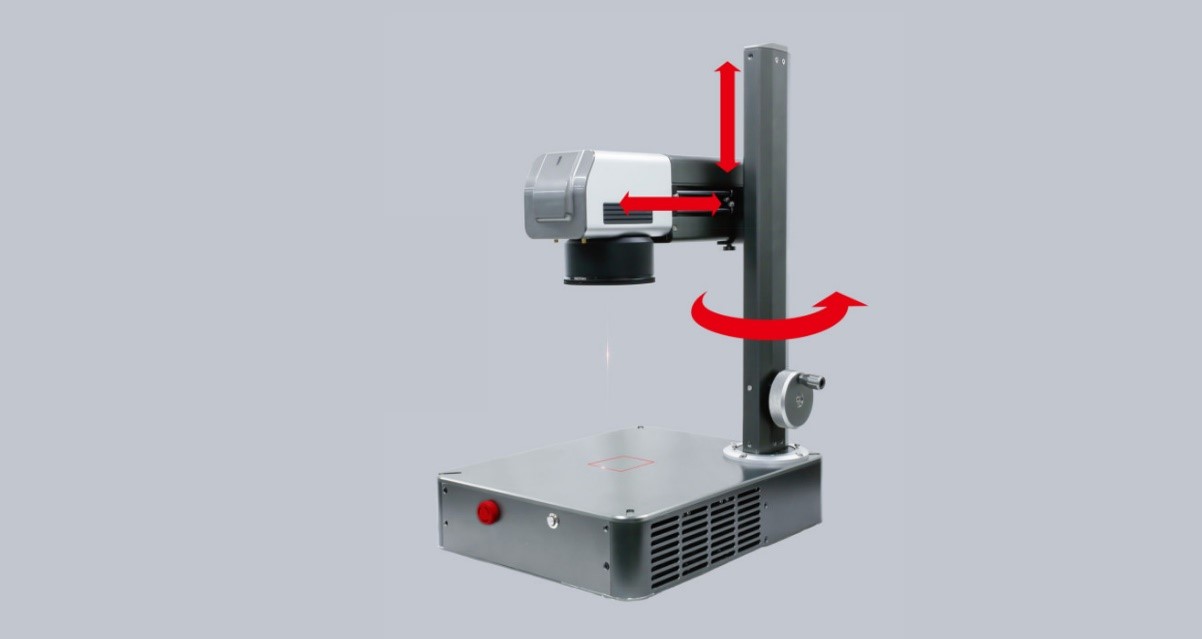

5. 360° Rotating Marking
By matching different brackets, 360° rotary marking and Z-direction and Y-direction laser marking can be applied to meet the marking requirements of workpieces of different sizes and heights, forming a multi-dimensional marking system with 360° of the cross arm. Rotation and front-to-back movement are completely created by Maxphotonics, providing users with a laser marking experience with 360° no dead angle and a wider range and more flexibility.
6. Cost-effective
Competitive cost-effective, buy a set , complete with 5 core accessories.
7. Accessories can be flexibly designed

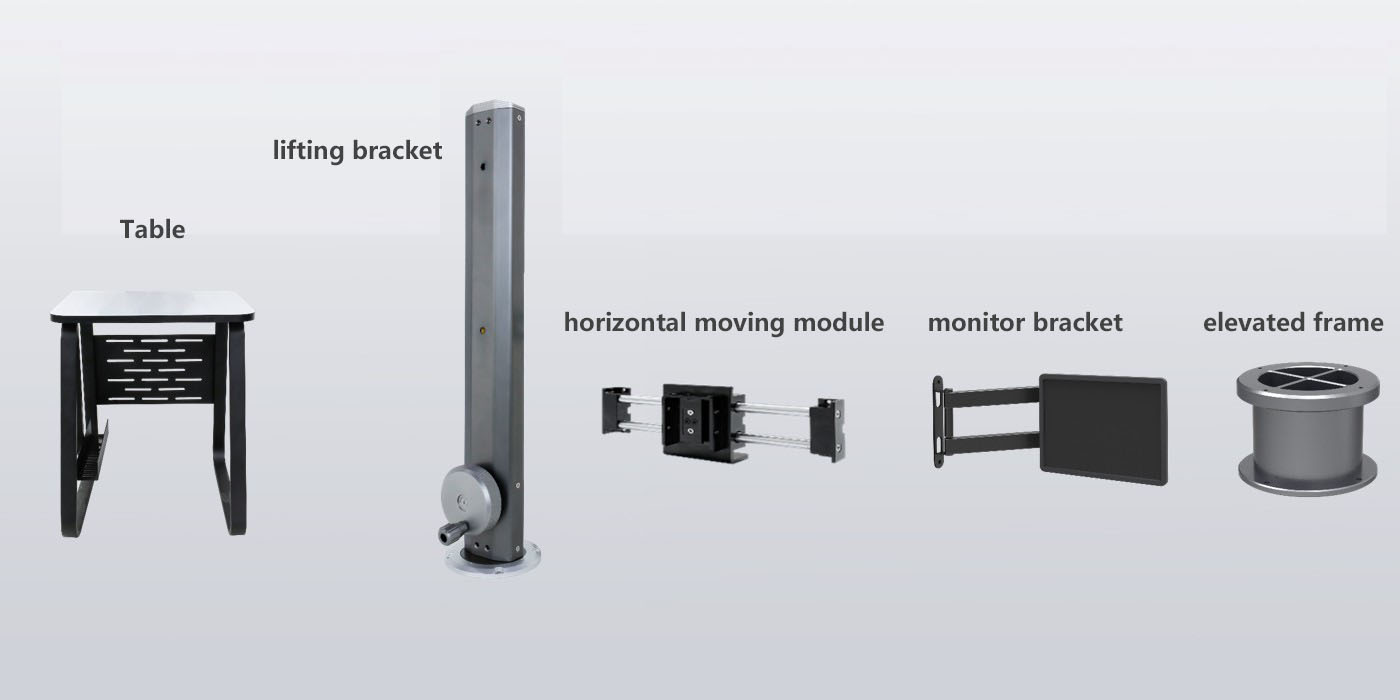

In order to provide customers with more intimate services, Maxphotonics has also designed a variety of assembly parts for your reference, such as simple table, lifting bracket, horizontal moving module, monitor bracket, and elevated frame. We support you to design more and better accessories, and join hands with us to meet the new laser marking era of mini, portable, flexible and easy to use.
