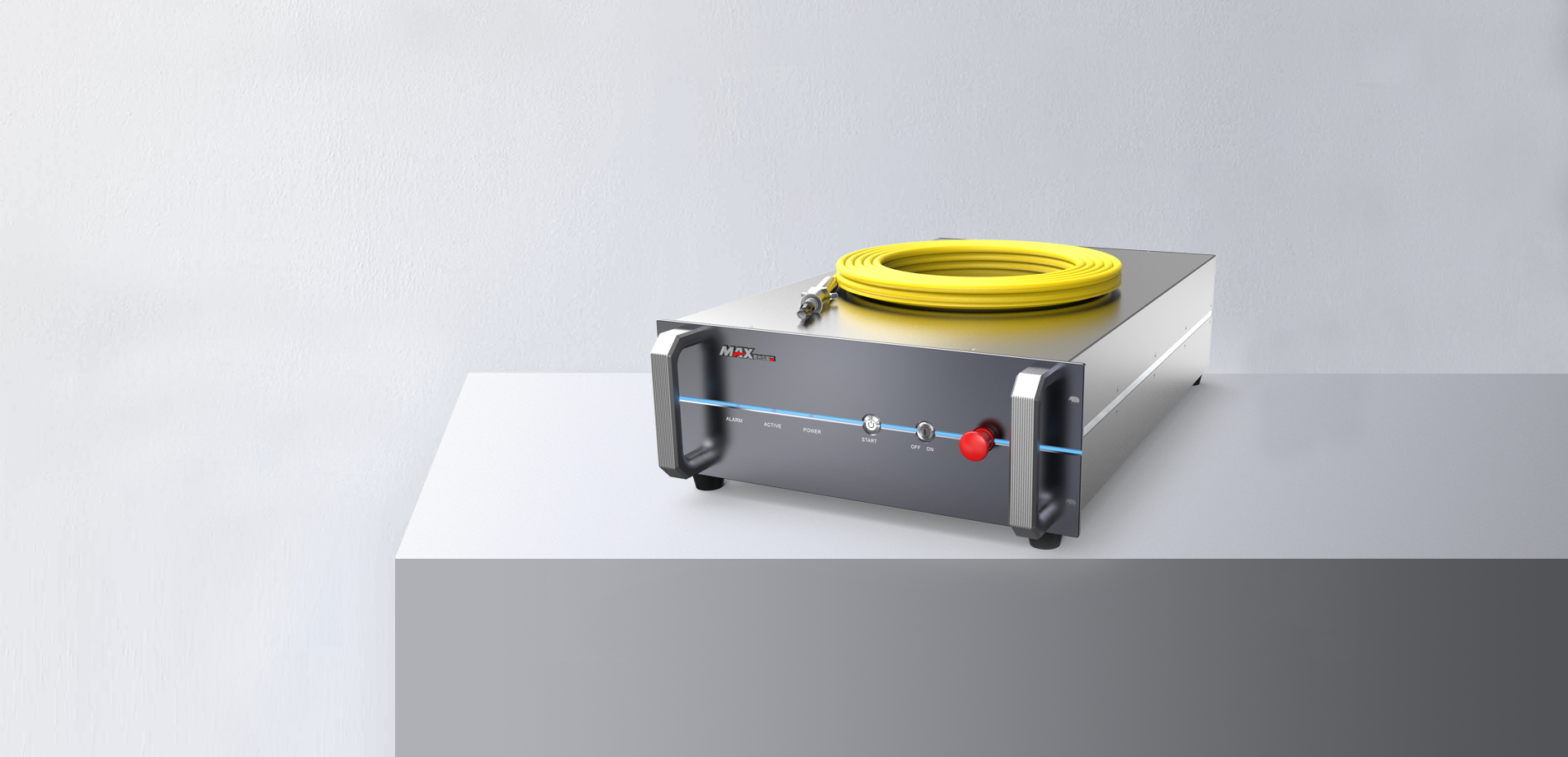

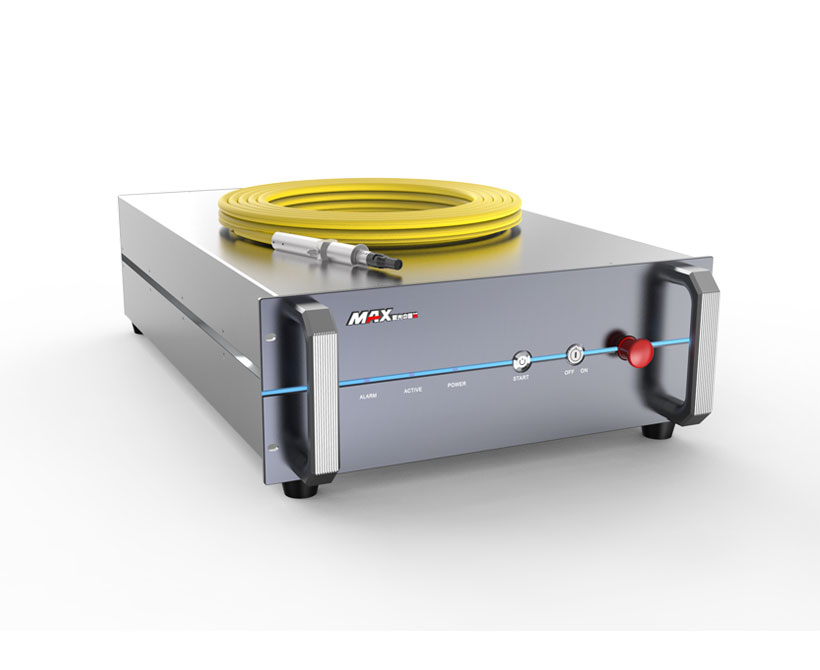

800W-1500W SINGLE MODULE CW FIBER LASER
Product Description
MFSC 800W-1500W Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.
Product Specification
Up to 6KW Output From CW Single Module Series
Better beam quality vs. multi module lasers
Greatly improved efficiency
Excellent Material Processing Performance
High speed in thin sheet cutting
Strong capability in thick material processing
Compact Design, Maintenance Free
Highly integrated system with modular design
Easy maintenance significantly reduce TCO
Smaller Size with Higher Stability
>60% reduction in volume
Higher flexibility when integrated in to system
High Level Vertical Integration
All key components are designed and produced in house
Strict quality control, high consistency and reliability

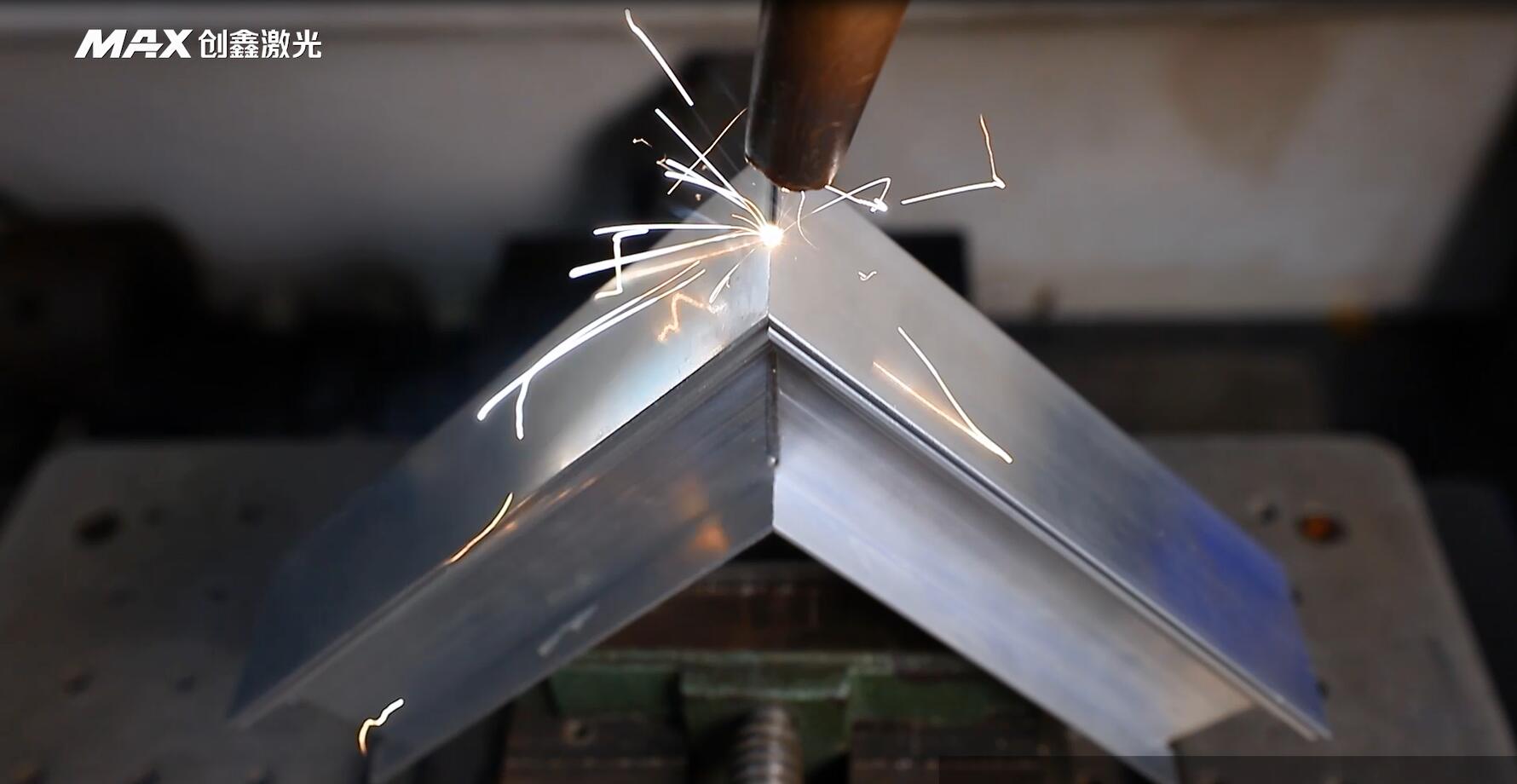

Product Application Video
Sample Show

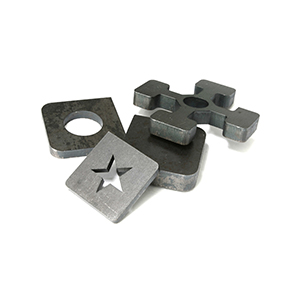

3mm Stainless Steel Cutting
6mm Carbon Steel Cutting

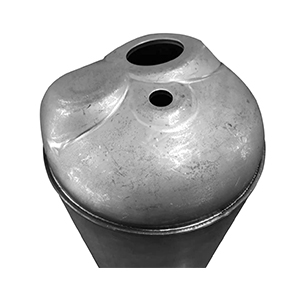

Seal Welding

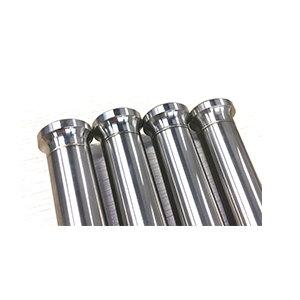

Stainless Steel Welding

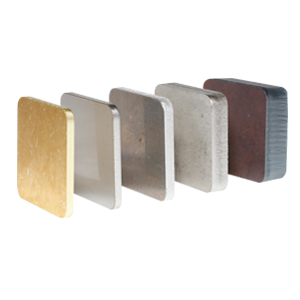

2-14mm Metal Cutting
6-12mm Carbon Steel Cutting
Precision Welding

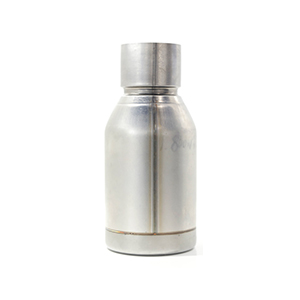

Seal Welding
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Shipbuilding
Laser cleaning of ships, laser cutting / welding of hulls
Industry Applications
Home Appliance Manufacturing
Sink / faucet / kitchenware stainless steel cutting and welding,Kitchenware panel character / graphic marking
Industry Applications
Petrochemical Industry
(Welding and cutting of petroleum pipelines), laser cleaning of pipelines
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
AEROSPACE
3D printing metal parts inside the aircraft, laser cleaning and refurbishment of aircraft engines / airframes
Industry Applications
Photovoltaic
Laser scribing of solar panels
Industry Applications
Packing
Flying marking of cans / plastic food packaging. Flying marking of plastic bottle
Industry Applications
Clocks Watches
Dial / back cover character / graphic marking, watch hands / gear / cutting
/
Product Parameters
Models MFSC-800W MFSC-1000W MFSC-1300W MFSC-1500W
OPTICAL SPECIFICATIONS
Nominal Power 800W 1000W 1300W 1500W
Mode of Operation CW/Modulated
Polarization Random
Power Tunability 10 to 100%
Wavelength 1080 ± 5 nm
Power Stability ±1 %
Laser Beam Quality M² 1.3(20uQBH)
2.8(50uQBH)
Modulation Frequency ≤20 kHz 20~50 kHz
   Preview Red Light Power    150 μW
FIBER DELIVERY SYSTEM
Interface QBH(LOC)
Length 15m standard, other lengths optional
Diameter 50(20/30/100) μm
Bending Radius 200 mm
ELECTRICAL RATINGS
Supply Voltage 220VAC (-15% to +10%) Single-phase
OTHER SPECIFICATIONS
Operating Temperature +10 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 85%
Cooling Method Water Cooling
Cooling Medium Distilled water/ Glycol Antifreeze
Dimension 800×482.6×193.2 mm
Weight 50(±3) kg 88 kg

You Might Also Like

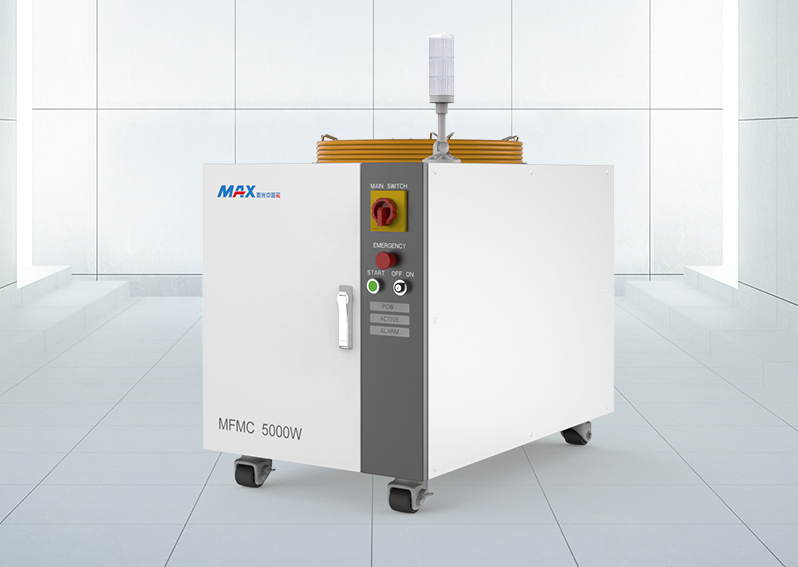

35000W MULTI-MODULE CW FIBER LASER
