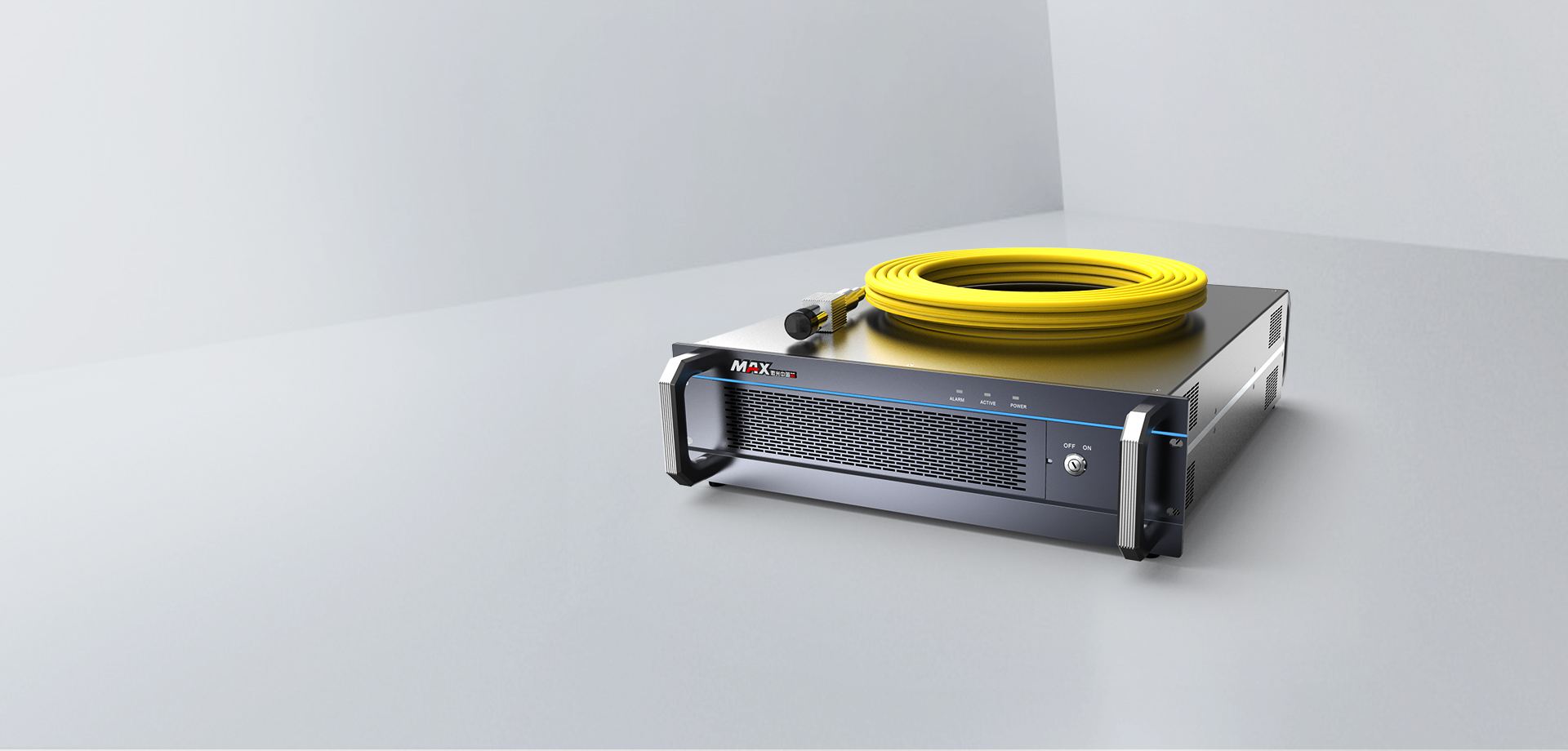

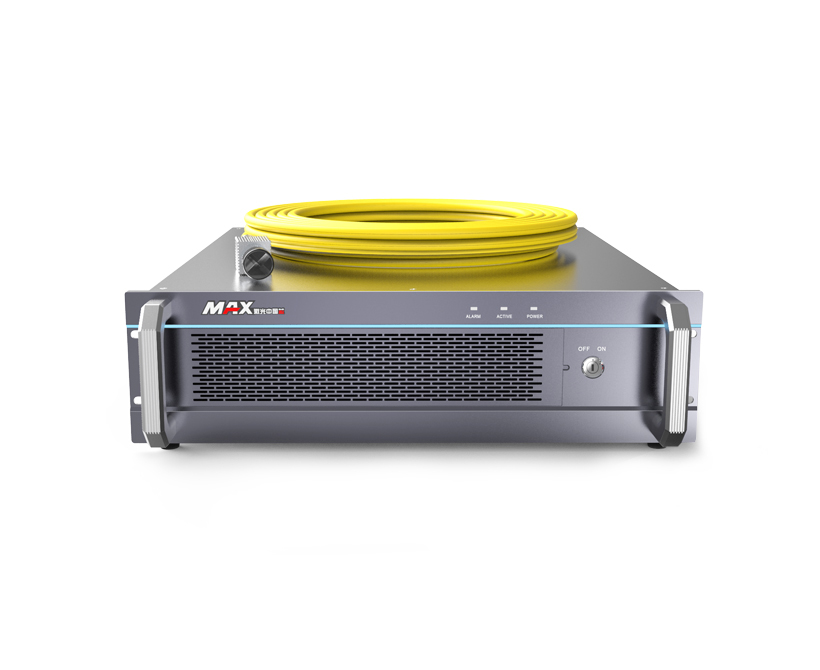

100W-200W Q-SWITCH PULSED FIBER LASER
Product Description
Q-Switch Pulsed Fiber Laser (MFP100W-200W) Series are maintenance-free fiber lasers based on the Q-switch technology and MOPA. These lasers deliver light whose emission wavelength is centered at 1060nm and peak power is up to 10KW or above. The light is guided to the work piece via a flexible metal-sheathed fiber cable. The laser’s running parameters are set by the user’s special controller via a DB-25 interface.
Excellent Single Pulse Energy
Higher single pulse energy makes our laser applicable to more types of materials and applications
New Compact and Rugged Design
>40% reduction in volume
Higher flexibility when integrated into system
Wide Application Even with Highly Reflective Material
High performance isolator effectively reduces reflection damage to the laser source
Smoothly marking on aluminum, copper and brass etc.
High Level Vertical Integration
All key components are designed and produced in house
Strict quality control, high consistency and reliability

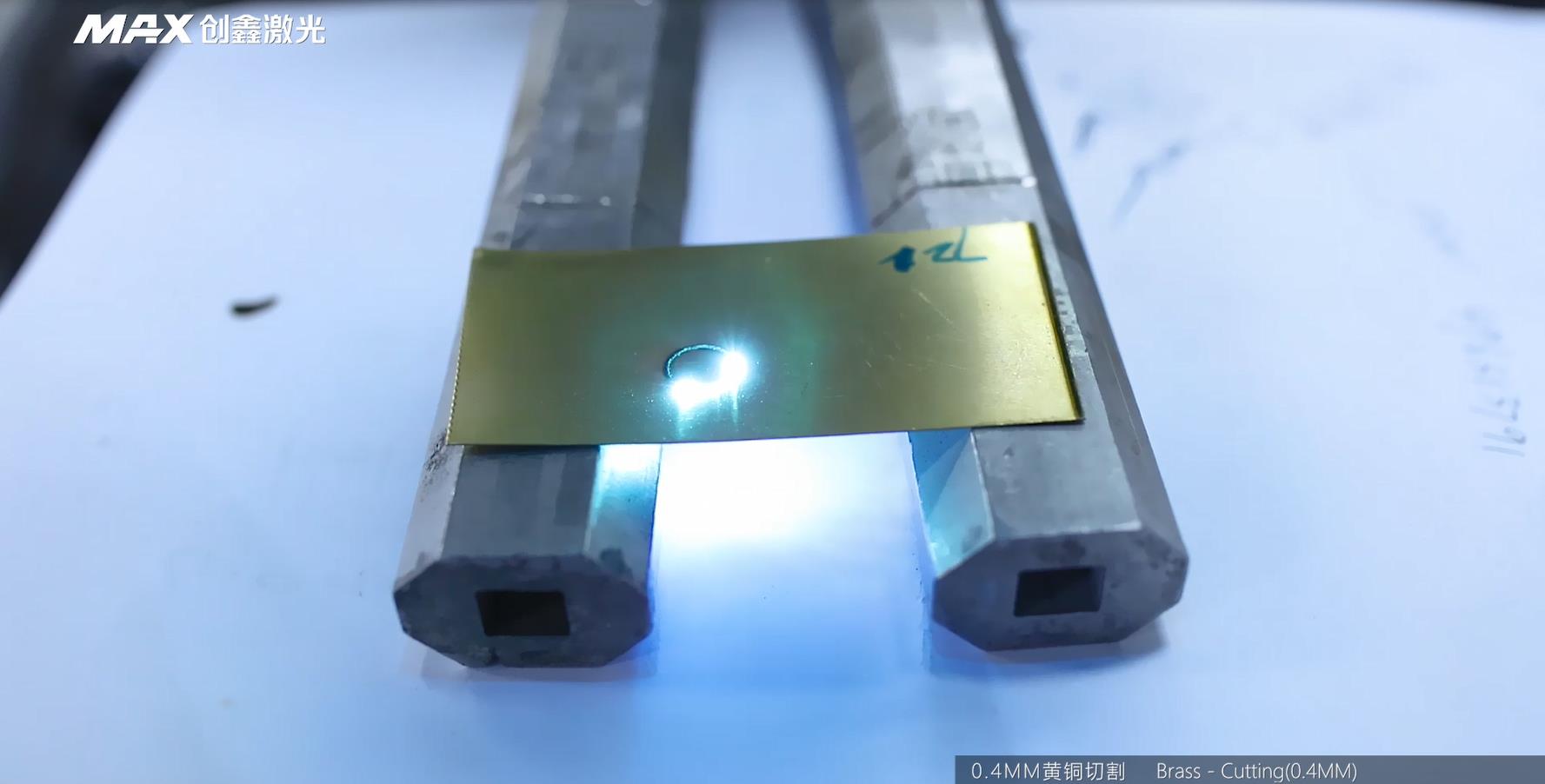

Product Application Video
Sample Show
Stainless Steel Deep Engraving
Paint Removing

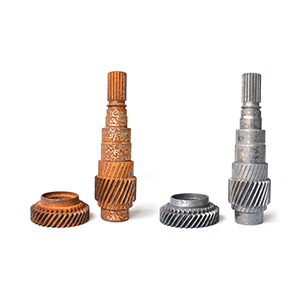

Carbon Steel Derusting

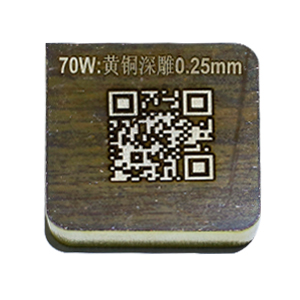

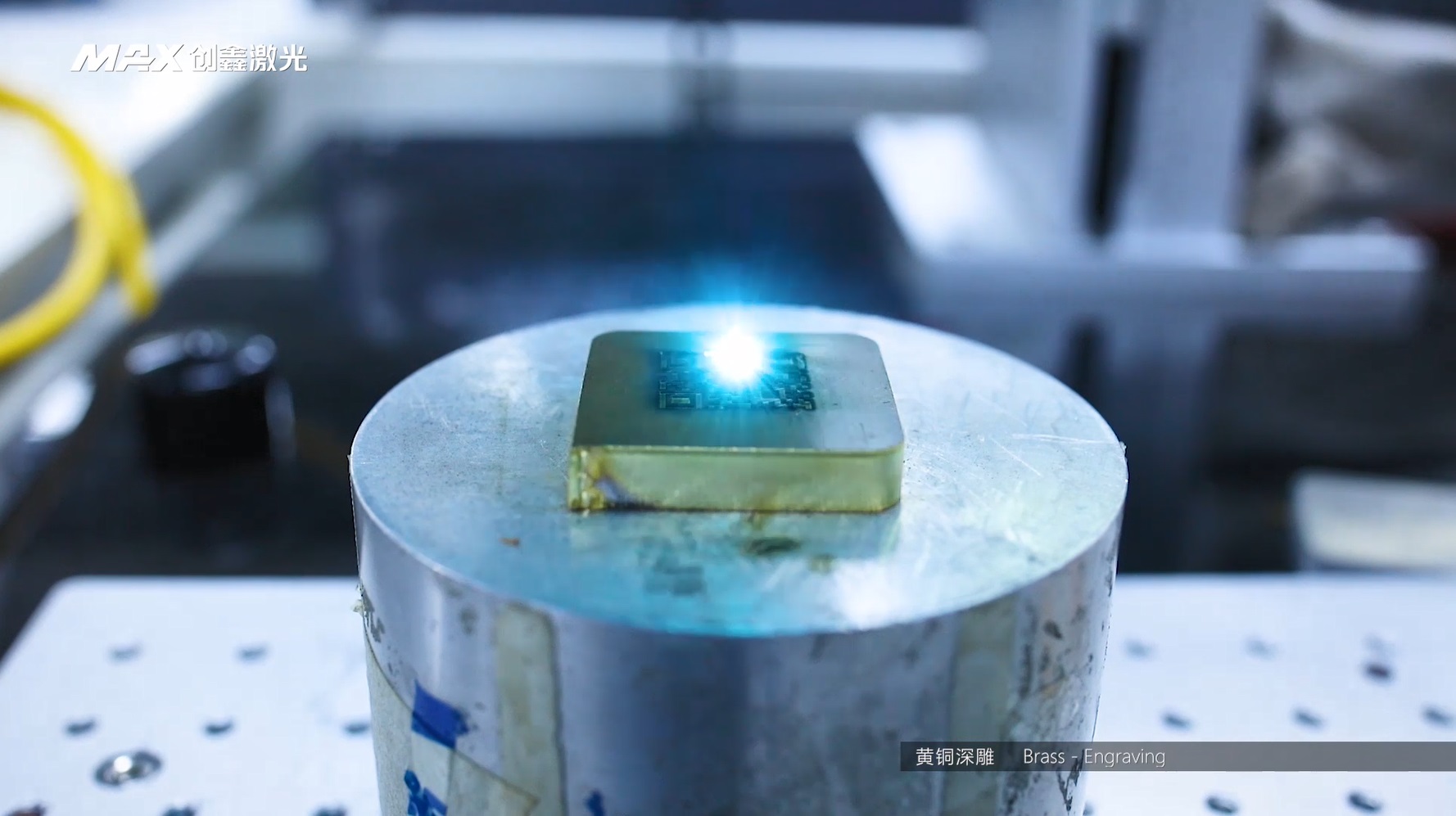

Brass Engraving
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Shipbuilding
Laser cleaning of ships, laser cutting / welding of hulls
Industry Applications
Home Appliance Manufacturing
Sink / faucet / kitchenware stainless steel cutting and welding,Kitchenware panel character / graphic marking
Industry Applications
Jewellery
Rings / necklaces / gold cutting, marking characters / patterns
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
Medical Instruments
Marking with forceps and scalpel,Medical equipment parts welding
Industry Applications
Automobile
Auto paint laser cleaning, repainting, car body welding, car body cutting, car interior control interface / button marking
Industry Applications
Power Battery
Power battery tab cutting / welding, battery shell / pole / explosion valve welding
Industry Applications
Photovoltaic
Laser scribing of solar panels
Industry Applications
Packing
Flying marking of cans / plastic food packaging. Flying marking of plastic bottle
Industry Applications
Chip
Chip number marking, chip scribing, laser trimming
Industry Applications
Clocks Watches
Dial / back cover character / graphic marking, watch hands / gear / cutting
Industry Applications
Semiconductor
Fine marking / scribing of semiconductor device characters
/
Product Parameters
Models MFP-100W MFP-200W
OPTICAL SPECIFICATIONS
Nominal Power 100W 200W
Mode of Operation Pulsed
Polarization Random
Power Tunability 5 to 100%
Wavelength 1064 ± 5 nm
Power Stability ≤5 %
Laser Beam Quality M² ≤2@1.5 mJ
Pulse Energy 1.5~5 mJ 1.5~8 mJ

Pulse Duration
90~130 ns 120~160 ns
Repetition Rate 20~200 kHz 20~230 kHz
          Full Power Repetition Rate           20@5mj 25@8mj
FIBER DELIVERY SYSTEM
Length                     5m standard, other lengths optional
Beam Diameter 5~8mm
Beam Ellipticity 90%
ELECTRICAL RATINGS
Supply Voltage 220 VAC Single-phase
OTHER SPECIFICATIONS
Operating Temperature +10 to +35℃
Storage Temperature -10 to +60℃
Humidity 10 to 95%
Cooling Method Air Cooling
Dimension 540×482.6×141.5 mm
Weight 23 ± 0.5 kg
