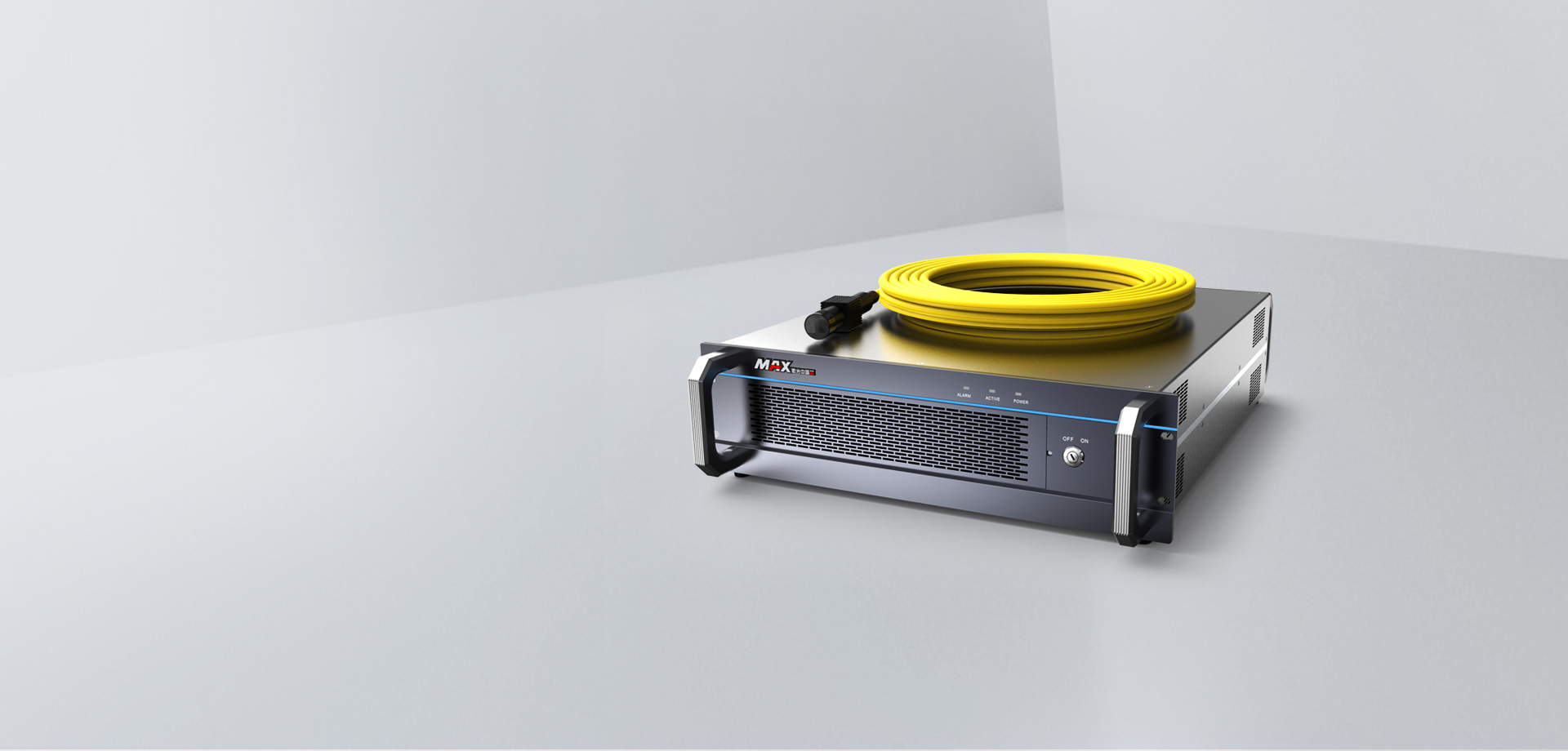

100H/120P/200P MOPA PULSED FIBER LASER
Product Description
MOPA pulsed fiber laser are designed based on MOPA structure, the pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 10-350ns, the peak power could reach up to 10KW, and the frequency could reach up to 2000kHz. The MOPA pulse fiber laser is ideal for alumina black marking,stainless steel multicolour marking,plastic marking, fine removel, laserengraving, etc.
New Generation Optical Path Design
New core technology of fiber gain control
High Output Power
Greatly improved single pulse energy
Compact and Rugged Design
Maintenance free Operation
Wide Application Even with Highly Reflective Material
High performance isolator effectively reduces reflection damage to the laser source
Smoothly marking on aluminum, copper and brass etc.
High Level Vertical Integration
All key components are designed and produced in house
Strict quality control, high consistency and reliability
Product Application Video
Sample Show

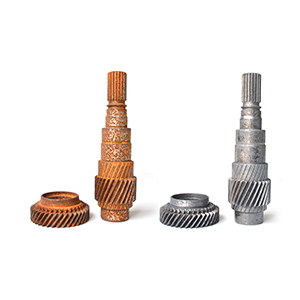

Carbon Steel Derusting
Sheet Metal Welding
Metal Precision Welding
Shrapnel Welding

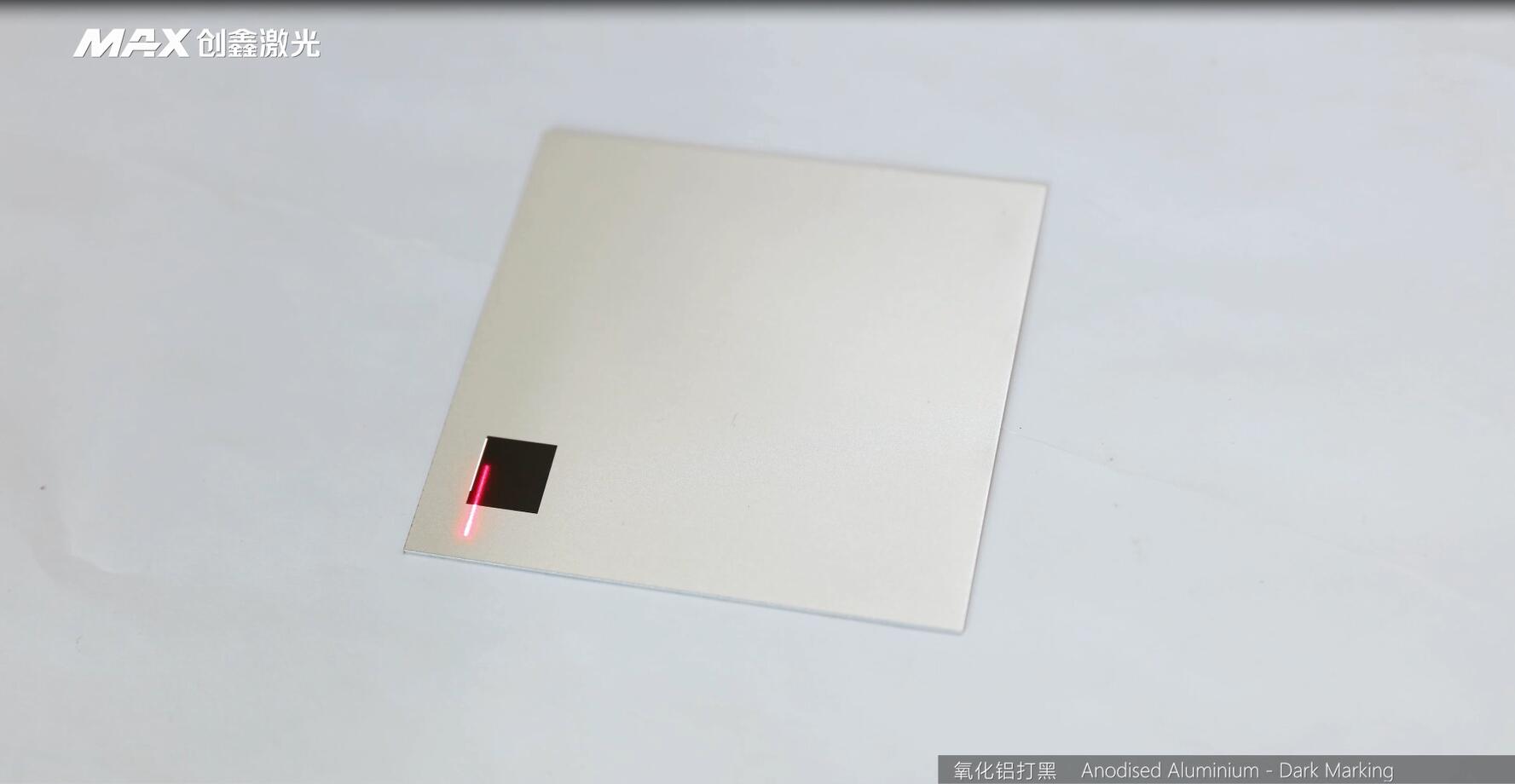

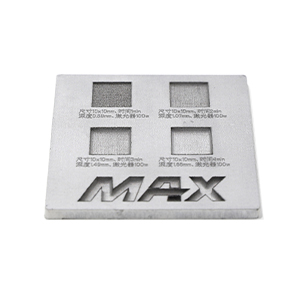

Aluminium Engraving

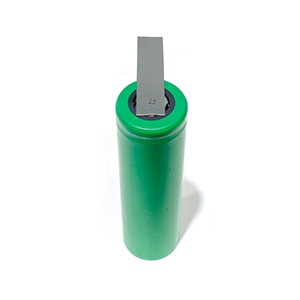

Battery Pole Ear Welding

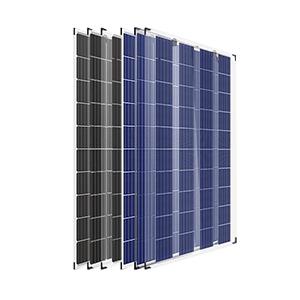

Solar Wafer Scribing

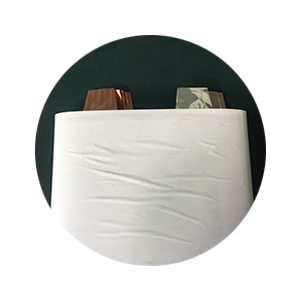

Battery Pole Ear Cutting
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Shipbuilding
Laser cleaning of ships, laser cutting / welding of hulls
Industry Applications
Home Appliance Manufacturing
Sink / faucet / kitchenware stainless steel cutting and welding,Kitchenware panel character / graphic marking
Industry Applications
Jewellery
Rings / necklaces / gold cutting, marking characters / patterns
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
Mechanical Equipment
Equipment parts cutting, laser cleaning equipment stains, equipment parts welding together
Industry Applications
Medical Instruments
Marking with forceps and scalpel,Medical equipment parts welding
Industry Applications
Automobile
Auto paint laser cleaning, repainting, car body welding, car body cutting, car interior control interface / button marking
Industry Applications
Power Battery
Power battery tab cutting / welding, battery shell / pole / explosion valve welding
Industry Applications
Photovoltaic
Laser scribing of solar panels
Industry Applications
Packing
Flying marking of cans / plastic food packaging. Flying marking of plastic bottle
Industry Applications
Chip
Chip number marking, chip scribing, laser trimming
Industry Applications
Clocks Watches
Dial / back cover character / graphic marking, watch hands / gear / cutting
Industry Applications
Semiconductor
Fine marking / scribing of semiconductor device characters
/
Product Parameters
Models MFPT-100H MFPT-120P MFPT-200P
OPTICAL SPECIFICATIONS
Nominal Power 100W 120W 200W
Mode of Operation Pulsed
Polarization Random
Power Tunability 10 to 100%
Wavelength 1064 nm
Power Stability ≤5 %
Laser Beam Quality 1.4~1.8
Pulse Energy 1 mJ 1.33 mJ
Pulse Duration 10~350 ns 60~350 ns
Repetition Rate 1~2000 kHz 1~1000 kHz
FIBER DELIVERY SYSTEM
Length 5m standard, other lengths optional
Beam Diameter 6~9mm
ELECTRICAL RATINGS
Supply Voltage 220 VAC Single-phase
OTHER SPECIFICATIONS
Operating Temperature 0 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 95%
Cooling Method Air Cooling
Dimension 540×482.6×141.5 mm
Weight 21 kg
