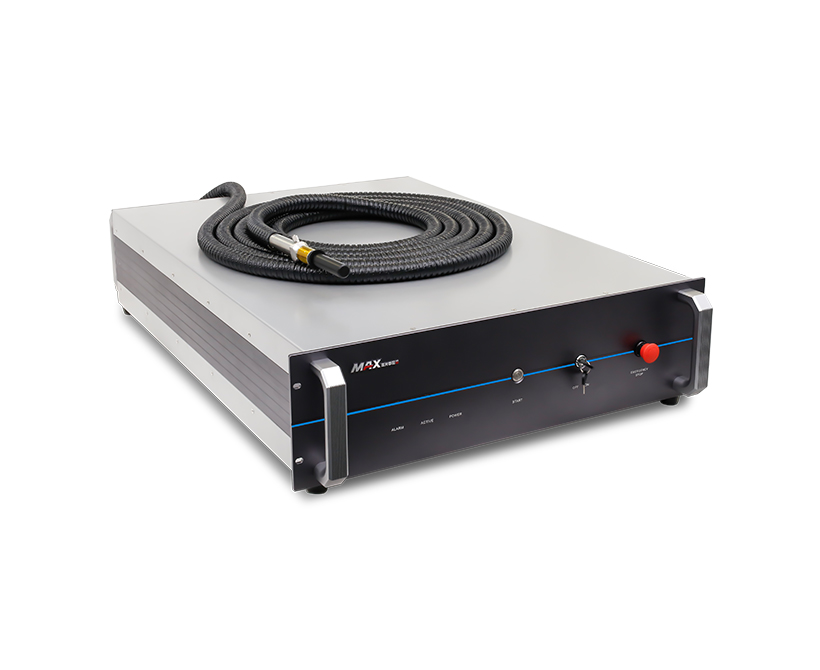

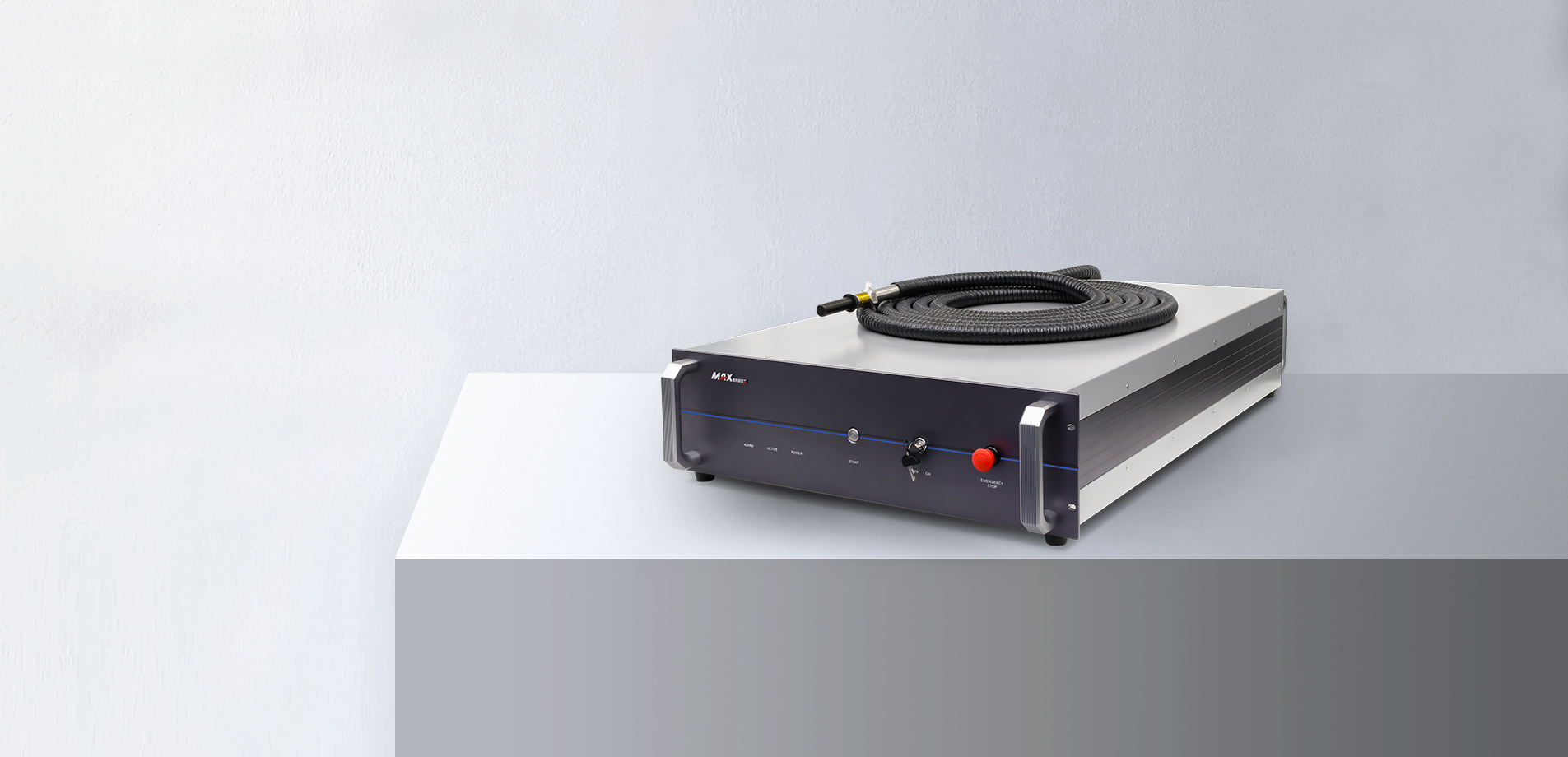

500W MOPA PULSED FIBER LASER
Product Description
The MFPT-500W MOPA fiber laser is one of the cutting-edge products of Maxphotonics, which is constructed with a main oscillator and a high power fiber amplifier (MOPA).Multiple power options and compact structure. Easy to operate, overall maintenance free, can be directly integrated into user equipment. A periodic pulse sequence with a wavelength of about 1060 nm and a peak power of more than 250 KW is used. The operating parameters of the laser are set by the 25Pin control interface, and the special controller of the customer can be used for the handheld laser. Mainly used in laser cleaning.
New Generation Optical Path Design
New core technology of fiber gain control
High Output Power
Maximum nominal output power up to 500W
Greatly improved single pulse energy
Compact and Rugged Design
Maintenance free Operation
Wide Application Even with Highly Reflective Material
High performance isolator effectively reduces reflection damage to the laser source
Smoothly marking on aluminum, copper and brass etc.
High Level Vertical Integration
All key components are designed and produced in house
Strict quality control, high consistency and reliability
Sample Show
Aluminum Alloy Oxide Layer Cleaning

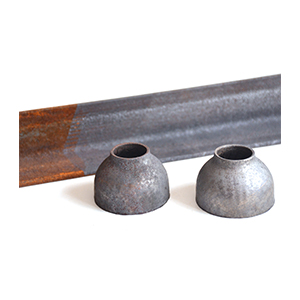

Carbon Steel Derusting

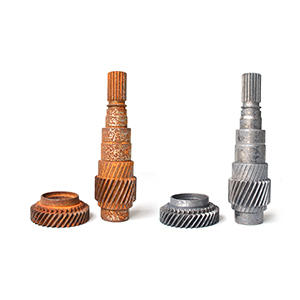

Gear Cleaning

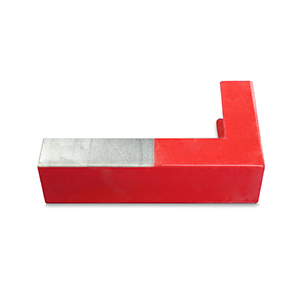

Paint Removing
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Shipbuilding
Laser cleaning of ships, laser cutting / welding of hulls
Industry Applications
Home Appliance Manufacturing
Sink / faucet / kitchenware stainless steel cutting and welding,Kitchenware panel character / graphic marking
Industry Applications
Petrochemical Industry
(Welding and cutting of petroleum pipelines), laser cleaning of pipelines
Industry Applications
Jewellery
Rings / necklaces / gold cutting, marking characters / patterns
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Rail Transit
Rail rust laser cleaning, rail parts cutting, rail joint welding
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
Mechanical Equipment
Equipment parts cutting, laser cleaning equipment stains, equipment parts welding together
Industry Applications
Medical Instruments
Marking with forceps and scalpel,Medical equipment parts welding
Industry Applications
Automobile
Auto paint laser cleaning, repainting, car body welding, car body cutting, car interior control interface / button marking
Industry Applications
Power Battery
Power battery tab cutting / welding, battery shell / pole / explosion valve welding
Industry Applications
Power Grid
Laser cleaning of kites / garbage bags on wires, laser cleaning of oxide layer of power station equipment
Industry Applications
Photovoltaic
Laser scribing of solar panels
Industry Applications
Packing
Flying marking of cans / plastic food packaging. Flying marking of plastic bottle
Industry Applications
Chip
Chip number marking, chip scribing, laser trimming
Industry Applications
Clocks Watches
Dial / back cover character / graphic marking, watch hands / gear / cutting
Industry Applications
Semiconductor
Fine marking / scribing of semiconductor device characters
/
Product Parameters
Model MFPT-500W
OPTICAL SPECIFICATIONS
Nominal Power 500W
Mode of Operation Pulsed
Polarization Random
Power Tunability 10 to 100%
Wavelength 1064 nm
Power Stability ≤5 %
Laser Beam Quality, BPP 7.7 mm x mrad
Pulse Energy 30 mJ
Pulse Duration 200~350 ns
Repetition Rate 1~400 kHz
FIBER DELIVERY SYSTEM
Interface 220/600 QBH
Length 15m standard, other lengths optional
Diameter 220 μm
Beam Divergence Angle 70 mrad
ELECTRICAL RATINGS
Supply Voltage 220 VAC Single-phase
Power Consumption ≤3000 W
OTHER SPECIFICATIONS
Operating Temperature 0 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 95%
Cooling Method Water Cooling
Cooling Medium Distilled water/ Glycol Antifreeze
Dimension 682.6×1000×202.8 mm
Weight 70 kg
